Noark MCB 2P TYPE-C 10kA 16A - 40A Ex9BN

  • Brands:Noark
  • Product Code: MCB2NO
  • Availability: In Stock

  • 11.90€

  • Ex Tax: 10.00€

Available Options

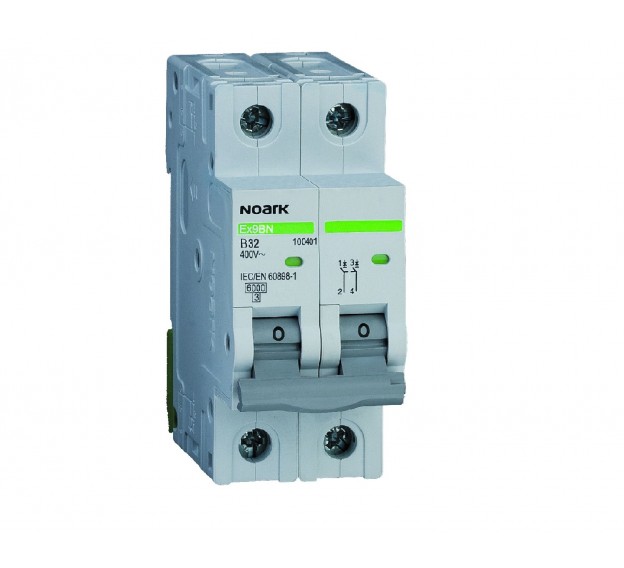

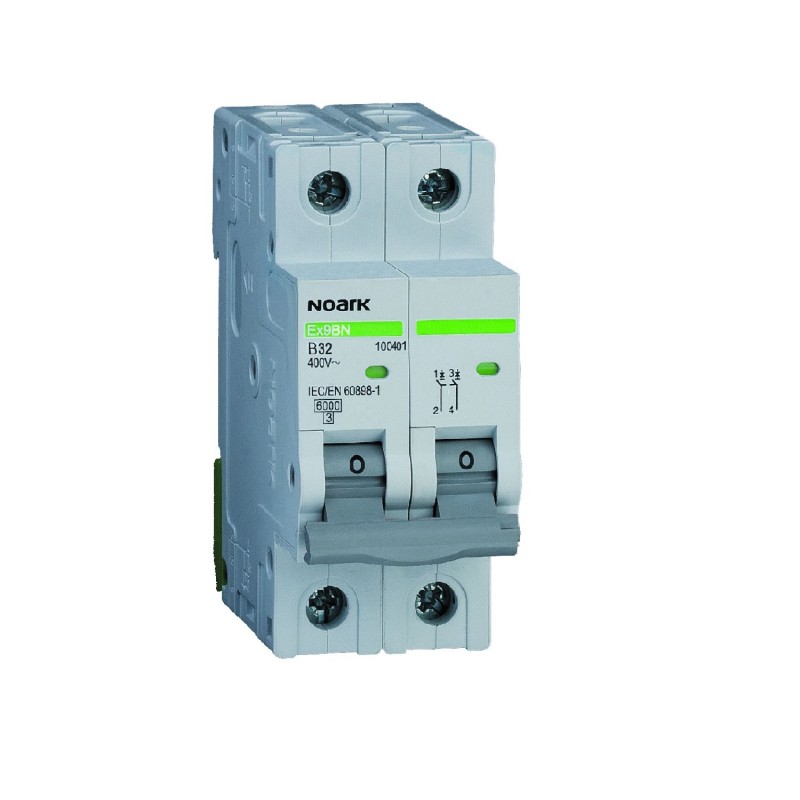

NOARK Miniature Circuit Breaker Ex9BN 2Pole type C 10kA


Available in standard capacities from 16A to 40A.

Works with 12-400V AC, 12-48V DC

Arbitrary Line connection, works with cables going in from below as well as from above

Fully compatible with RCD add-on Ex9LE

High Quality Noark Ex9BN miniature circuit breakers are suitable for domestic as well as industrial applications. They can be combined with wide range of accessories including auxiliary and signal contacts, shunt trip release, undervoltage and overvoltage release or RCD add-on block. It is possible to create diversed combination of accessories, all components fit together.


Datasheet: noark mcbs

Catalogue

Technical
Line voltage connection arbitrary above or below
Minimum voltage 12 V AC/DC
Rated breaking capacity Icn 10kA
Rated op. voltage Ue 230/400 V AC 48 V DC (per pole)
Tripping characteristics C
Standards IEC/EN 60898-1 IEC/EN 60947-2
