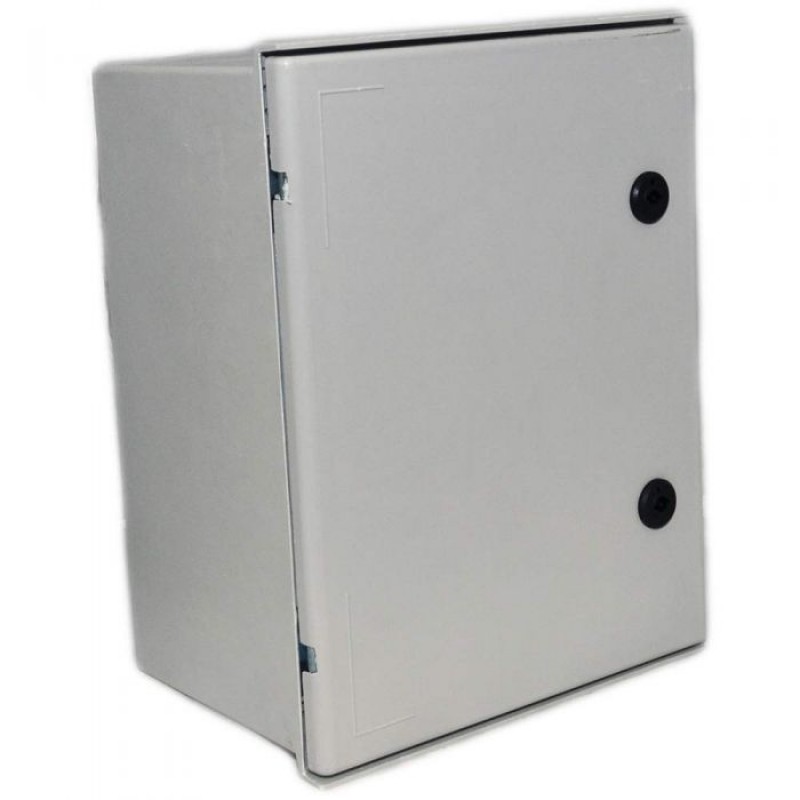

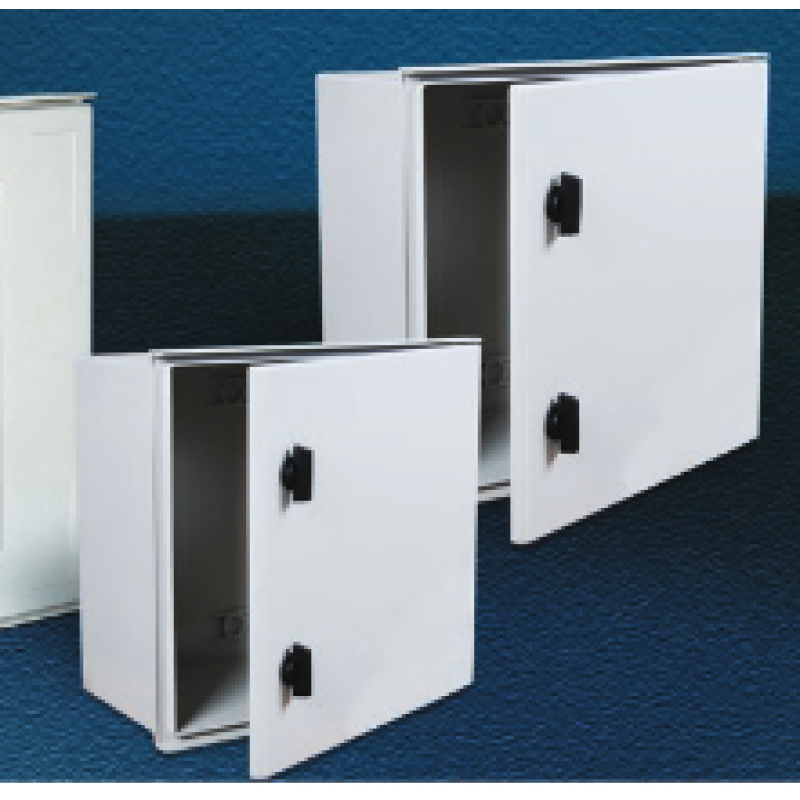

TIBOX Polyester Enclosures IP65 waterproof, IK08 impact rating

                                 Galvanised
                W x H x D   Mounting Plate size

TIP43 -  300 x 400 x 200     353 x 245

TIP325 - 250 x 300 x 140   263 x 201

TIP54 - 400 x 500 x 200     453 x 345

TIP64 - 400 x 600 x 230     553 x 345

TIP65 - 500 x 600 x 230     553 x 447

TIP86 - 600 x 800 x 300     749 x 540

Includes Galvanized Mounting Plate and Mounting Brackets

Polyester enclosures are comparable in strength metal enclosures but are lighter and have better corrosion resistance.

Datasheet: TIBOX POLYESTER
